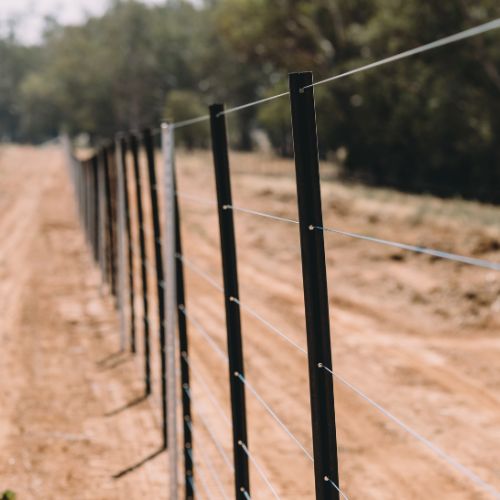

The Westonfence™ Fencing System is centred around the use of insulated suspension posts used in conjunction with plain wire. The insulating properties of the insulated suspension post create a fence that can be easily electrified without the need for additional insulators.

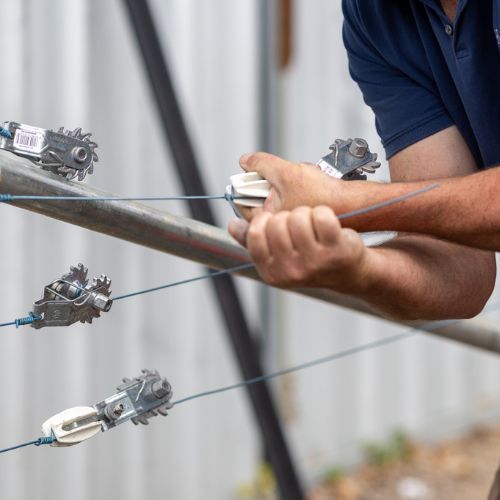

The insulated suspension posts are fastened into position using high tensile spring clips.
Westonfence™ insulated suspension posts offer strength and reliability, longevity, resistance to fire and UV stability. Their unique design reduces the chance of shorts when fences are electrified.
Click to download the Westonfence™ brochure.
Standard Insulated Suspension Posts
Product | Length (mm) | Predrilled Holes | Hole Spacings (mm) | Gallagher Code | |
D3 Insulated Suspension Post | 556 | 3 | 30 | 255 | 525 | SG80300 | |
D4 Insulated Suspension Post | 810 | 4 | 25 | 270 | 530 | 780 | SG80400 | |
D5 Insulated Suspension Post | 810 | 5 | 25 | 180 | 355 | 555 | 780 | SG80500 | |
D6 Insulated Suspension Post | 960 | 6 | 25 | 175 | 330 | 505 | 705 | 930 | SG80600 | |
D7 Insulated Suspension Post | 1100 | 7 | 25 | 165 | 315 | 470 | 645 | 845 | 1070 | SG80700 | |
D7 XL Insulated Suspension Post | 1200 | 7 | 125 | 265 | 415 | 570 | 745 | 945 | 1170 | SG80710 | |
D8 Insulated Suspension Post | 1365 | 8 | 25 | 165 | 315 | 470 | 645 | 845 | 1070 | 1340 | SG80800 | |
D8 XL Insulated Suspension Post | 1470 | 8 | 125 | 265 | 415 | 570 | 745 | 945 | 1170 | 1440 | SG80810 | |
8 Line D7 & D8 Bundle | Bundle combines D7 and D8 ISPs in 2:1 ratio (2x D7 ISPs to 1x D8 ISP) | SG80811 | |||
D9 Insulated Suspension Post | 1100 | 9 | 25 | 140 | 255 | 375 | 515 | 650 | 795 | 935 | 1070 | SG80900 | |
D9 XL Insulated Suspension Post | 1650 | 9 | 25 | 165 | 315 | 470 | 645 | 845 | 1070 | 1340 | 1610 | SG80910 | |
D10 Insulated Suspension Post | 1300 | 10 | 25 | 140 | 255 | 375 | 515 | 650 | 795 | 935 | 1070 | 1275 | SG80110 | |
Leaning Offset | 660 | 4 | 25 | 200 | 400 | 630 | SG80200 |
Other Products
Product | Description | Gallagher Code | |
Steel Post High Tensile Fastening Clips | Suitable for attaching Insulated Suspension Posts (ISPs) to steel posts | SG82100 | |
High Tensile Fastening Clips | This high tensile fastening clip secures the ISP on the fence by gripping it tightly to the wire | SG82200 | |
Maxi Post High Tensile Fastening Clips | This high tensile fastening clip secures the ISP to a steel maxi post by gripping it tightly with the fence wire | SG82300 | |
Clip Spanner | Used to attach clips to fence | G83000 | |
Threading Needle | Used to thread wire through a pallet-sized bundle or “slab” of droppers | SG83300 | |
Earth Stake | 316 Stainless steel 12 mm earth stakes | SG84000 |
